IBM2435(2435-D01)

CPU AMD 5x86-75/133MHz
VIDEO/VRAM Chips&Tech. CT-65548/1MB
640x480/64k
LCD 7.8inch/DSTN
Max.RAM 24MB(Internal/Fixed)
HDD 1.6GB(StandardIDE)
Modem/Sound N/A
Interfaces:
1 Serial, IrDA(115.2kbps), Port replicatorPCMCIA(2-type2/1-type3)
There may be no drivers on web sites. You can find utilities on Panasonic U.S. site.

IBM Pen computers that had been developed before this had brand names of "ThinkPad" or "PS/55", but after this had been released, pen computers from IBM wasn't given "ThinkPad" brand (except 'ThinkPad TransNote')
Also, 2435 wasn't developed by IBM. manufacturer of this machine was Panasonic, so the design or system is diferrent from IBM's. For example, it doesn't have "Easy-setup". Instad of this, you set up its BIOS by installing BIOS setup utility for Win9x.

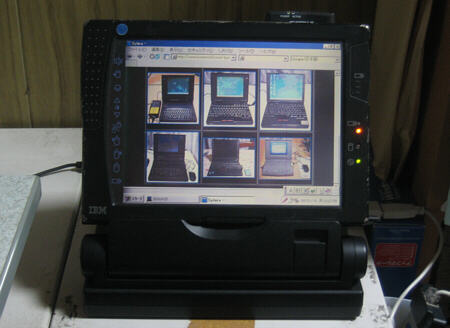

IBM2435 with its credor(or port replicator).
The form of this credor is very good and cool.
It has AC/DC jack, serial, pararell, ps/2, FDDdrive.

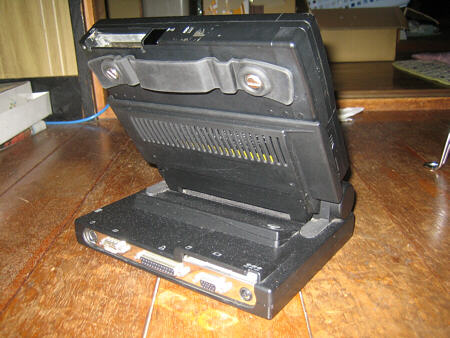

behind IBM2435's back.
Different from IBM9103, the successor of IBM2435, it has a rubber strup for handheld operation.

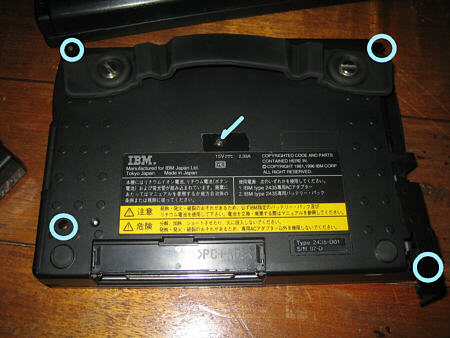

the position of screws

To desemble IBM2435, 5 screws on back panel should be loosen.

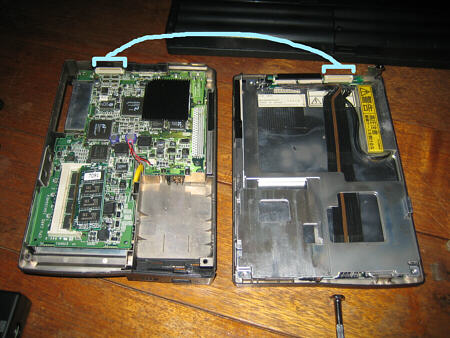

seperating in two parts

When all of 5 screws are removed, IBM2435(upper/bottom) can seperate in two sections(upper[including LCD panel]/lower[including systemboard]) easily.
2 sections are connected with a couple of connectors.

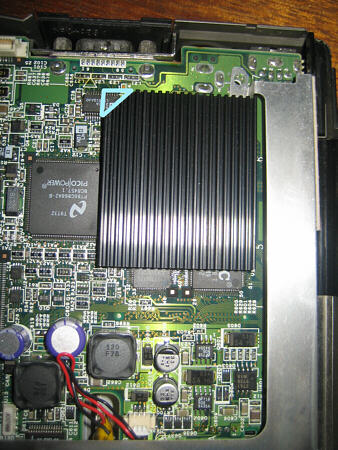

CPU radiator of later revision

IBM2435(....and also Panasonic CF-01) has its specific trouble called "memory disease".
It is that the system can't recognize all of physical memory and the disease occur, system becomes unstable and sometimes it is halted.
According to the master of a junkshop in Akihabara, the disease may be caused by disconnection between board and BGA of CPU. So it can't be remended by soldering.

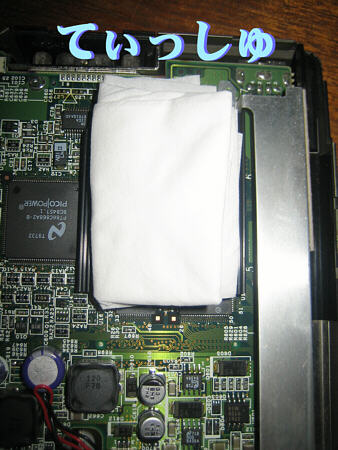

fixed with tissue paper

.

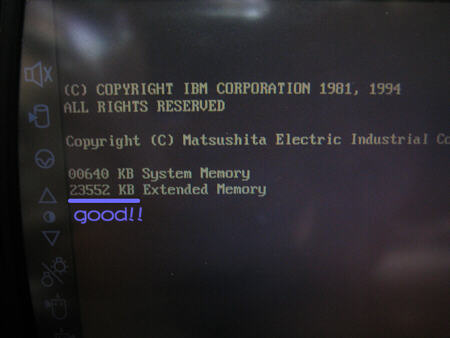

Memory disease's remended temporally

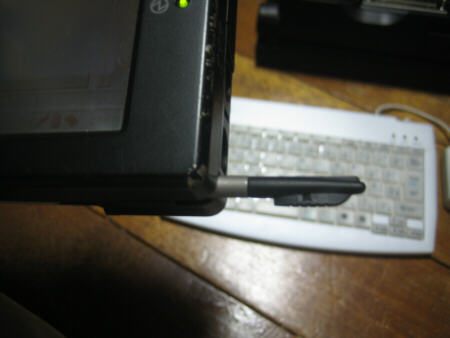

WorkPad 31J's Stylus


touch panel operation
